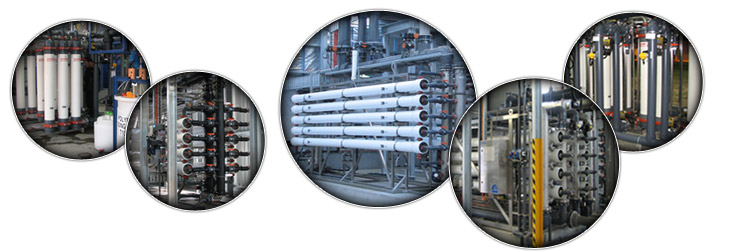

BAXIGA Series Ultrafiltration (UF) Systems
BAXIGA Series is based on X-Flow proprietary and patented, leading edge hydrophilic PES hollow fibre membrane technology to physically remove up to 99.9999% of bacteria, 99.99% of viruses and parasites, and particulates larger than 0.01 micron (nominal), the same technology used to treat drinking water and wastewater in municipalities, industries, commercials and peacekeeping/emergency response missions worldwide.
BAXIGA Series is also designed to provide clean, clear and safe drinking water according to US Environmental Protection Agency (US EPA) and World Health Organisation (WHO) drinking water protocols from municipal water source, well water and surface water (e.g. lake and river).
Combining the strength of premium-quality, dependable products, strong research and development, Bacfree and X-Flow together bring you the next era in water filtration.
Membrane Module
Membrane Material of Construction Hydrophilic PES
Membrane Housing 8” Dia x 60” Length per module
Membrane Area
40m2 (AQ/XIGA) or 55m2 (AQII)
Housing Material
Stainless Steel 304, Stainless Steel 316L or FRP
Maximum Operating Pressure and Temperature
Max. 4 Bar, Max. 40°C
Flow Rate
3-5.0m3/hr per module for feedwater <5NTU;
Features
Excellent permeate quality: turbidity <0.1NTU, bacteria removal > 6 log, virus removal >4 log, SDI <3
Physical barrier to microorganisms, impurities and particulates, non-chemical water treatment.
Full automated filtration and backwashing. Optional chemical enhanced backwashing for extended life.
Stainless steel skid mounted with accessibility for usage and maintenance.
Membrane module can be upgraded and modified for use as pre-filter for desalination system.
How it work?
Comparison With Other Filtration Technologies
System Capabilities
BAXIGA Systems
Ultra-Violet Systems
Ozone Systems
Reverse Osmosis Systems
Sand Media Microfiltration Systems
Removal of Turbidity and Cloudiness
Yes
No
No
Yes
Yes
Removal of Bacteria and Viruses
Yes
Yes
Yes
Yes
No
Removal of Parasites
Yes
Yes
Yes
Yes
Yes
Removal of Minerals
No
No
No
Yes
No
Removal of Ionic Substances
No
No
No
Some
No
Removal of Particulates
>0.025 micron absolute
No
No
>0.01 micron
>5-10 micron
Efficient Self Cleaning & Recondition
Yes
Some
No
Some
Some
Risk of Fouling and Failure
Very low with regular backwashing and chemical enhanced backwashing.
Low with regular UV lamp and quartz glass replacement plus UV intensity monitor.
Dependable on the system design and ozone generator.
Low to high. Dependable on pre-filter setup and exposure to microorganisms contamination and biofilming.
Low to high depending on feed water quality.
